Fire Fighting Equipment and Appliances

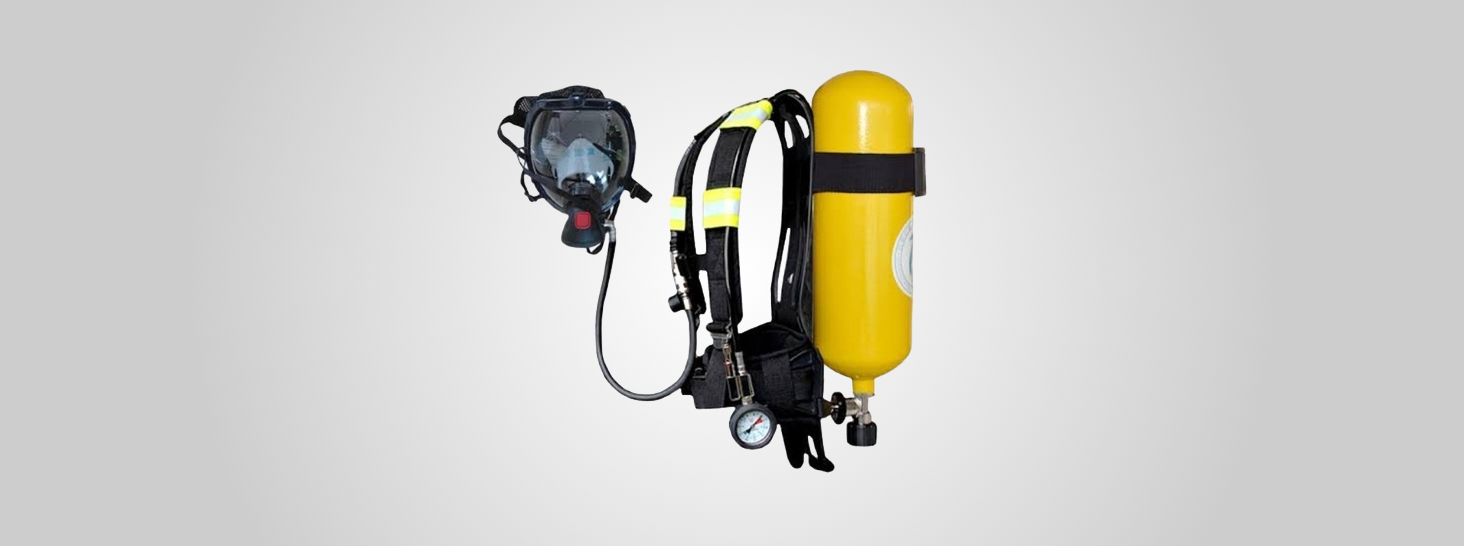

SCBA

MODEL RHZK5/30 RHZK6/30 RHZK6.8/30
CYLINDER MAERIAL ALLOY STEEL ALLOY STEEL CARBON FIBER
CYLINDER VOLUME 5 6 6.8
GAS STORAGE CAPACITY 1500 1800 2040
HOURS WORKING 40-50 55-60 60-65
WORKING PRESSURE 300 BAR 300 BAR 300 BAR
APPROVAL CCS/EC/RINA CCS/EC/RINA CCS/EC/RINA

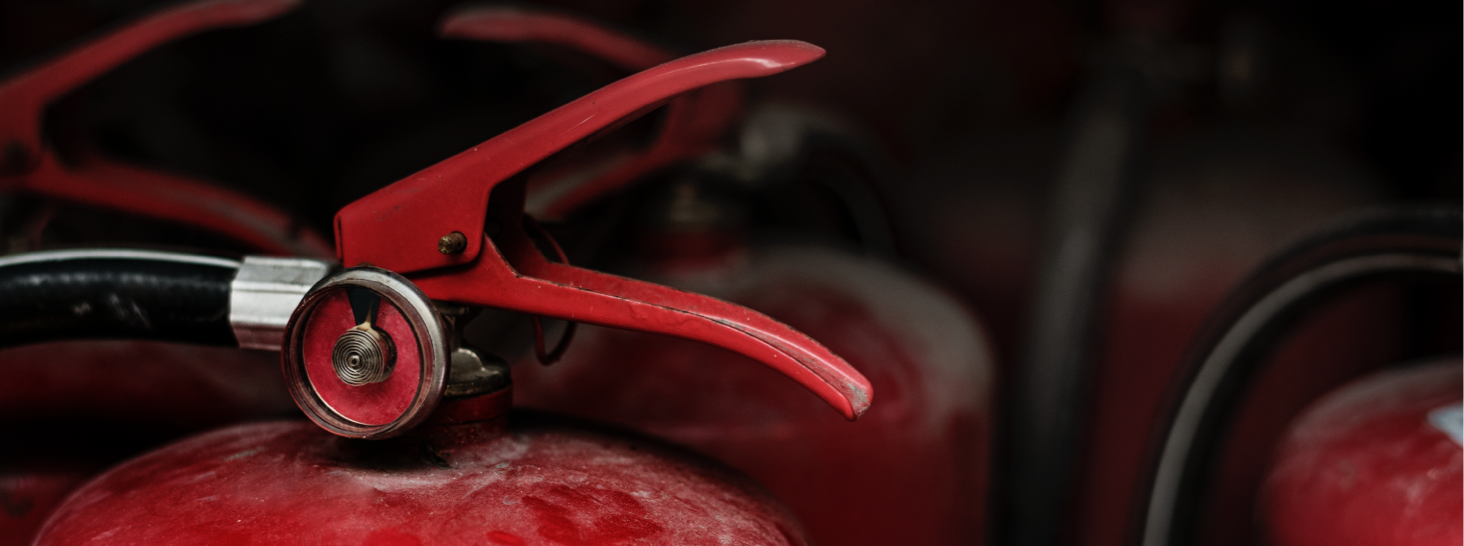

Fire Extinguisher Type

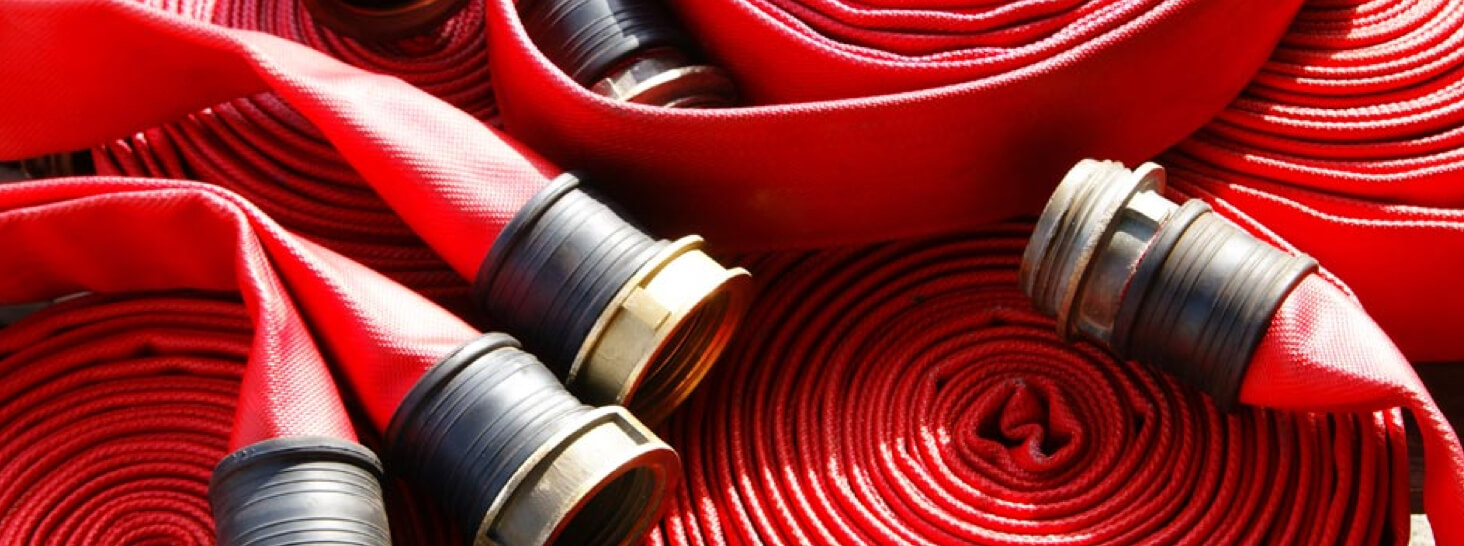

Fire Hoses

  • Non corrosion-proof Flame retardant Single-sided lining weight:146-294g/m.
  • Double-sided rubber weight:230-420g/m .
  • Approval: CCS/EC/IRS.
Size Working Pressure (Mpa/Bar/Psi) Test Pressure (Mpa/Bar/Psi) Bursting Pressure (Mpa/Bar/Psi) Length (Meter)
40 0.8/8/120 1.2/12/175 2.4/24/360 10 to 60
45 1.5/15/220 1.5/15/220 3.0/30/450 10 to 60
50 1.5/15/220 1.5/15/220 3.9/39/580 10 to 60
65 2.0/20/300 2.0/20/300 3.9/39/580 10 to 60
70 2.4/24/360 2.4/24/360 408/48/720 10 to 60

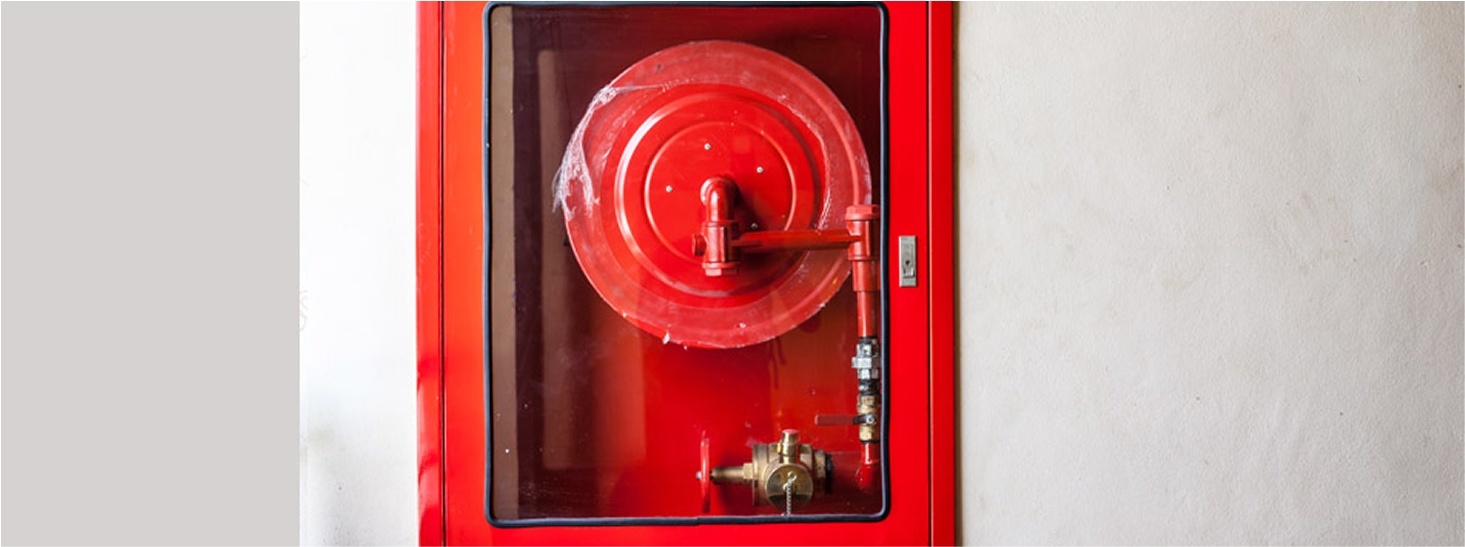

Fire Box Cabinets

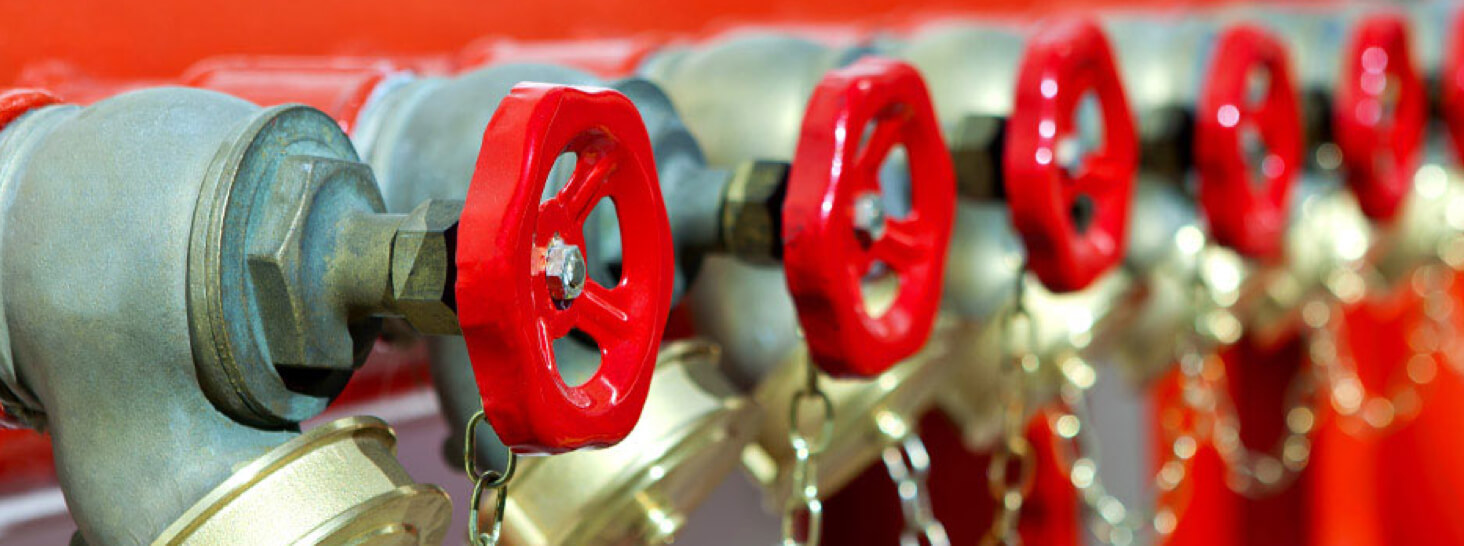

Fire Hydrant Valves

  • Jhon morris flange fire hydrant - Specifications :  40/50/65mm.
  • Machino flange fire hydrant - Specification : 40/50/65 mm.
  • Nakajima flange fire hydrant - Specifications : 40/50/65mm .
  • Storz flange fire hydrant - Specification : 40/50/65mm.

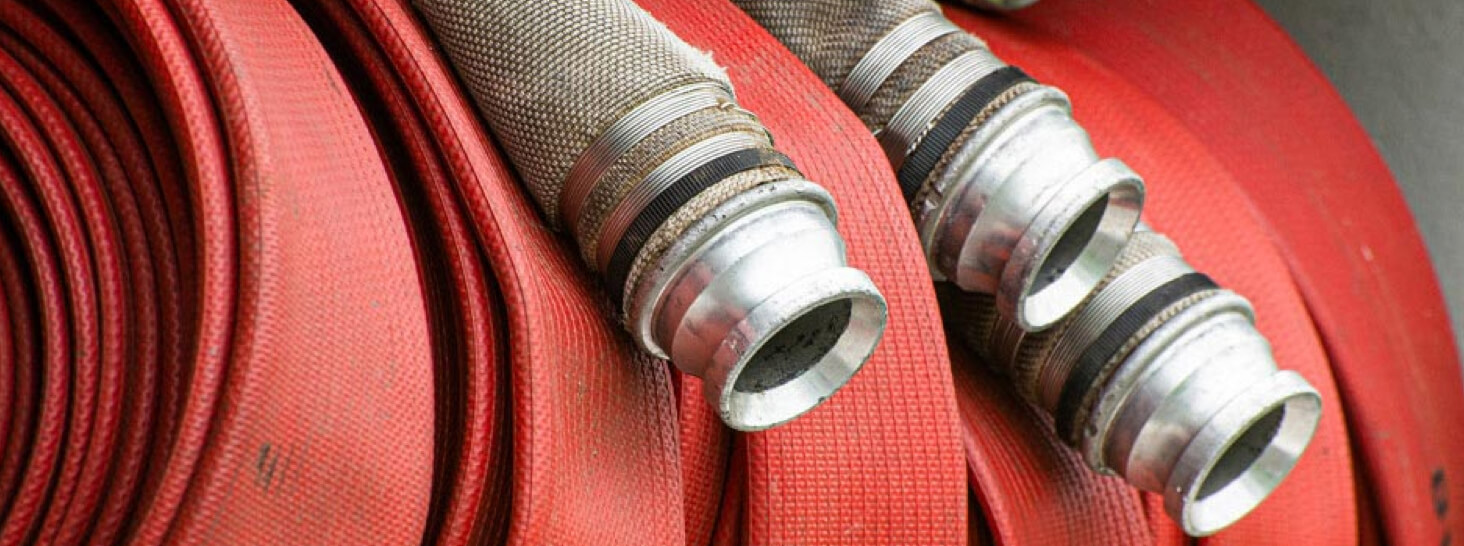

Fire Hose Coupling

Coupling Name Material Connection method Type Specification
Nakajima Coupling Brass or aluminium Binding Buckle 40 mm, 50 mm, 65mm, 80 mm
Machino Coupling Brass or aluminum Binding Flush bonding 50 mm, 65mm, 80mm, 90mm
Storz Coupling Brass or aluminum Binding Expansion - 40mm, 65mm, 80mm
Jhon Morris Coupling Brass or aluminium Binding - 40 mm, 50 mm, 65mm, 80 mm

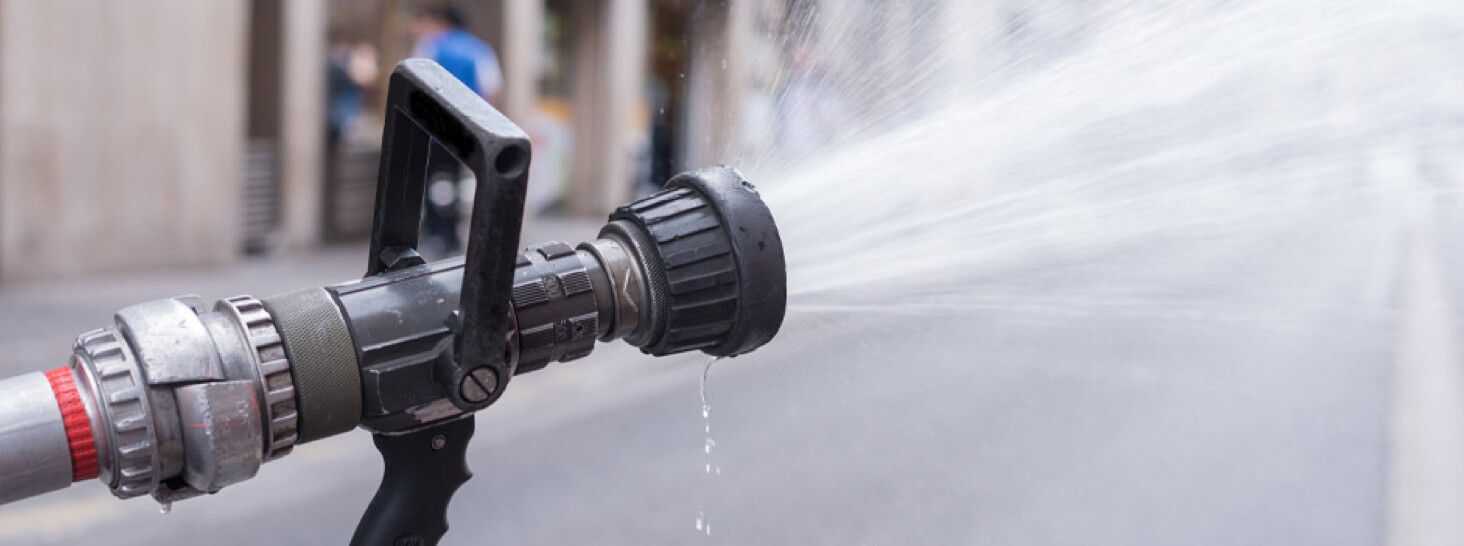

Fire Hose Nozzle

  • Storz jet - Spray nozzle tip Specifications: 40/50/65 mm.
  • Nakajima Jet - Spray nozzle tip Specifications: 40/50/65 mm.
  • Machino three position switched jet - Spray nozzle tip Specifications: 40/50/65 mm.
  • Jhon morris Three position switched jet - Spray nozzle tip Specifications: 40/50/65 mm.
